BitRaser Drive Eraser (DFU Variant) enables secure erasure of multiple Mac ® devices in Device Firmware Update (DFU) mode. The software performs firmware-level erasure to ensure complete data sanitization and restores devices in ‘Hello Mode’, ready for reuse and redeployment.
This approach is ideal for ITADs, enterprises, and Apple® refurbishers handling bulk device sanitization.
Before starting, ensure that the Host Mac has the latest version of Apple Configurator installed, the target Mac supports DFU mode, and the BitRaser Lock Key (License USB) is available. Use stable USB-C or Thunderbolt connectivity for a smooth erasure process.
Note: The ‘Host Mac’ acts as the controller device on which the BitRaser application is installed, while the ‘Target Mac’ is the device being erased.
How to Erase Multiple Mac Devices in DFU Mode
Follow the steps below to perform Target Mac erasure:
Step 1: Download the BitRaser Drive Eraser DFU Variant application from the link provided to you in the email and install it on the Host Mac. You may be prompted to install Rosetta to support Intel-based components on Apple Silicon Macs. Once installed, launch the application (See Image 1).
Image 1: BitRaser Drive Eraser DFU Variant Main UI
Step 2: Connect the Mac device(s) you want to erase to the Host Mac using a USB-C or Thunderbolt cable. Ensure both devices are connected using the correct ports that support DFU mode. If the device is powered on, then the ‘State’ will be reflected as ‘BOOTED’ (See Image 2).
Image 2: Target Mac Connected for Erasure
Step 3: Click on the ‘DFU’ button located in the bottom left corner of the Host Mac (See Image 3). The DFU mode on the Target Mac will be initiated automatically.
Image 3: Initiate DFU Mode on Target Mac
Step 4: Once the Target Mac is in DFU Mode, the device's state will change to ‘DFU’ (See Image 4). The Target Mac is now ready for erasure.
Click ‘Erase’ to begin.
Image 4: Target Mac in DFU Mode, Click Erase
Step 5: You will see a warning window informing you that all the data stored on the Target Mac will be erased beyond recovery. Select the erasure method: BitRaser Secure Erasure or Native OS Erasure.
Click ‘OK’ to proceed. (See Image 5).
Image 5: Click OK to Begin Erasure
Step 6: The BitRaser application downloads the latest firmware, securely erases the Target Mac, and then restores it with the latest firmware, making it ready for reuse and redeployment (See Images 6a & 6b).
Image 6a: Target Mac Erasure Progress – Downloading Firmware
Image 6b: Target Mac Erasure Progress – Erasing Mac
Step 7: During the process, a pop-up will appear asking you to allow BitRaser to access data from other apps.
Click ‘Allow’ (See Image 7a).
Once the Target Mac has been erased and restored to the latest firmware, it will automatically start in ‘Hello Mode,’ and the Host Mac will display the status as ‘Completed’ on the BitRaser UI (See Image 7b).
Image 7a: Allow BitRaser to Access Data on Other Apps

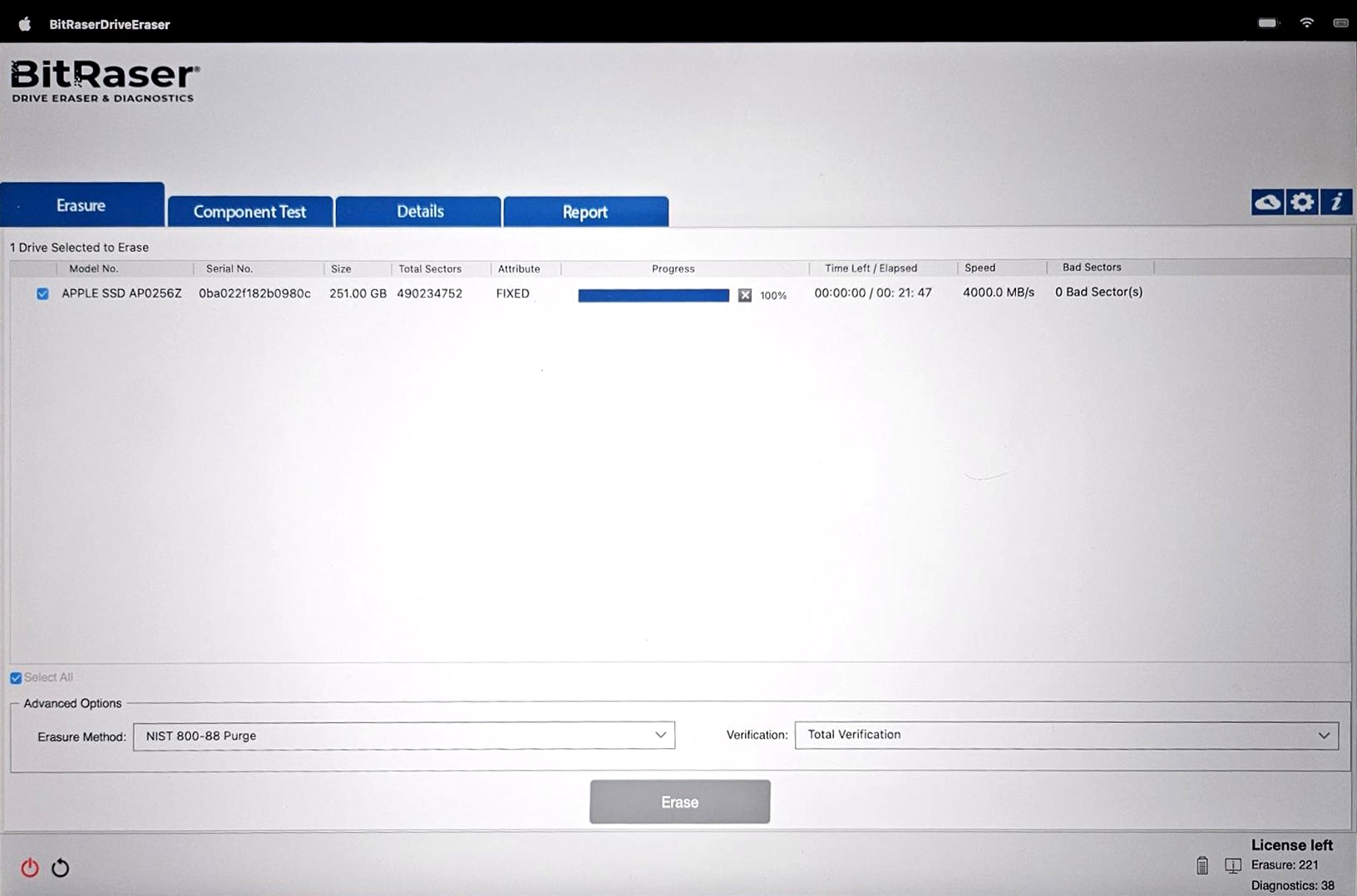

Image 7b: Target Mac Erasure Process Completed

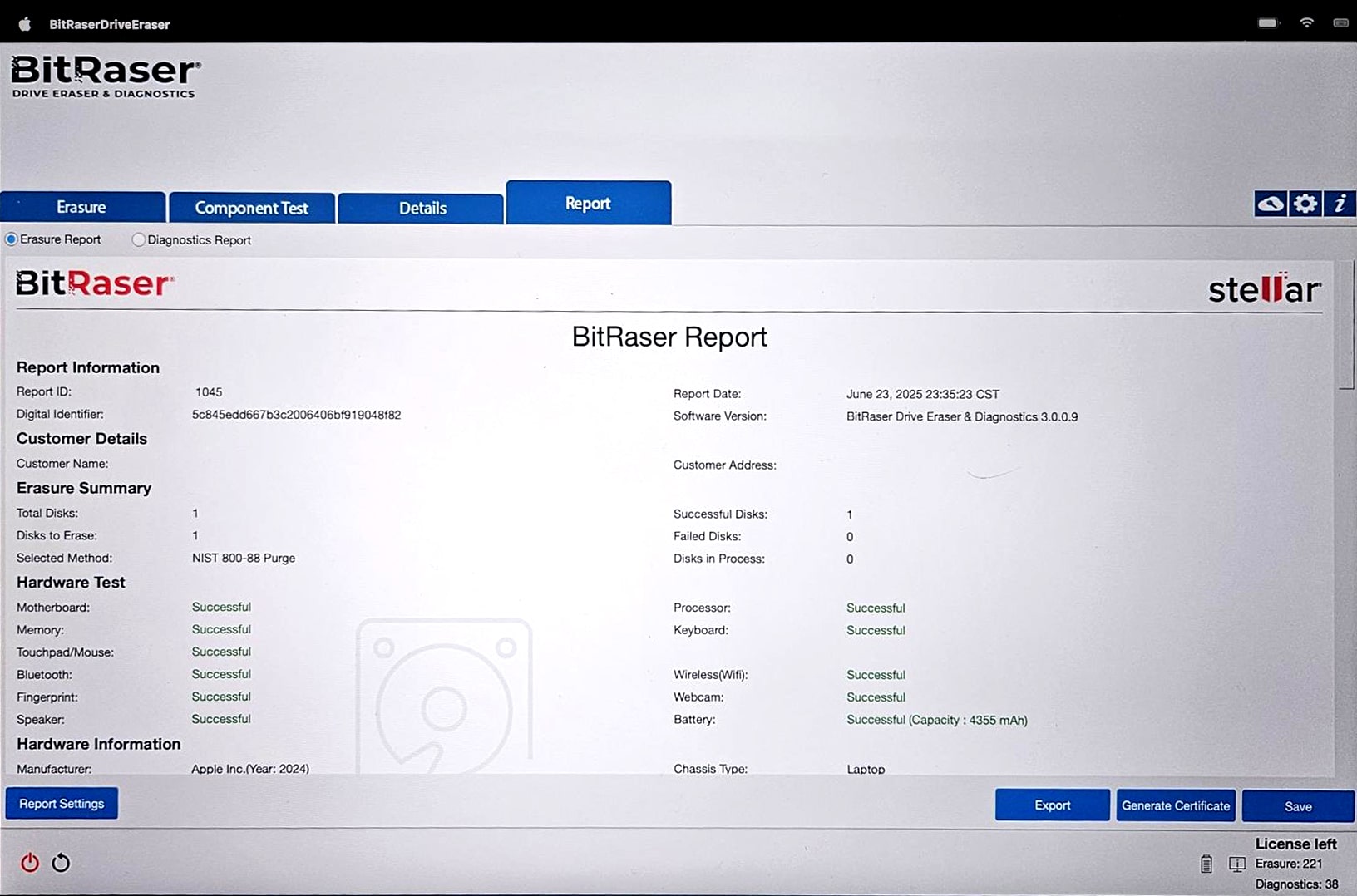

To view and save erasure reports, go to the ‘Reports’ tab (See Image 8a).
Connect the BitRaser Lock Key to the Host Mac. This key contains your BitRaser Drive Eraser licenses. Once connected, the license count will update (See Image 8b).
Image 8a: Reports Tab
Image 8b: License Count Updated
Step 8: To save an erasure report on the Host Mac, select the report by clicking the checkmark next to it, then click ‘Save’. The application will prompt you to select the destination path and choose the format for the report (See Image 9a). Once you have done that, click ‘OK’ (See Image 9b).
The report will be saved on the Host Mac. A confirmation message “Report saved successfully” will appear (See Image 9c).
Image 9a: Select Report to Save
Image 9b: Select Destination & Report Format, then Click OK
Image 9c: Report Saved Successfully
The Target Mac has been successfully erased, and the erasure report has been saved on the Host Mac. You can view the erasure report on the link below:
View BitRaser Drive Eraser DFU Variant Report
